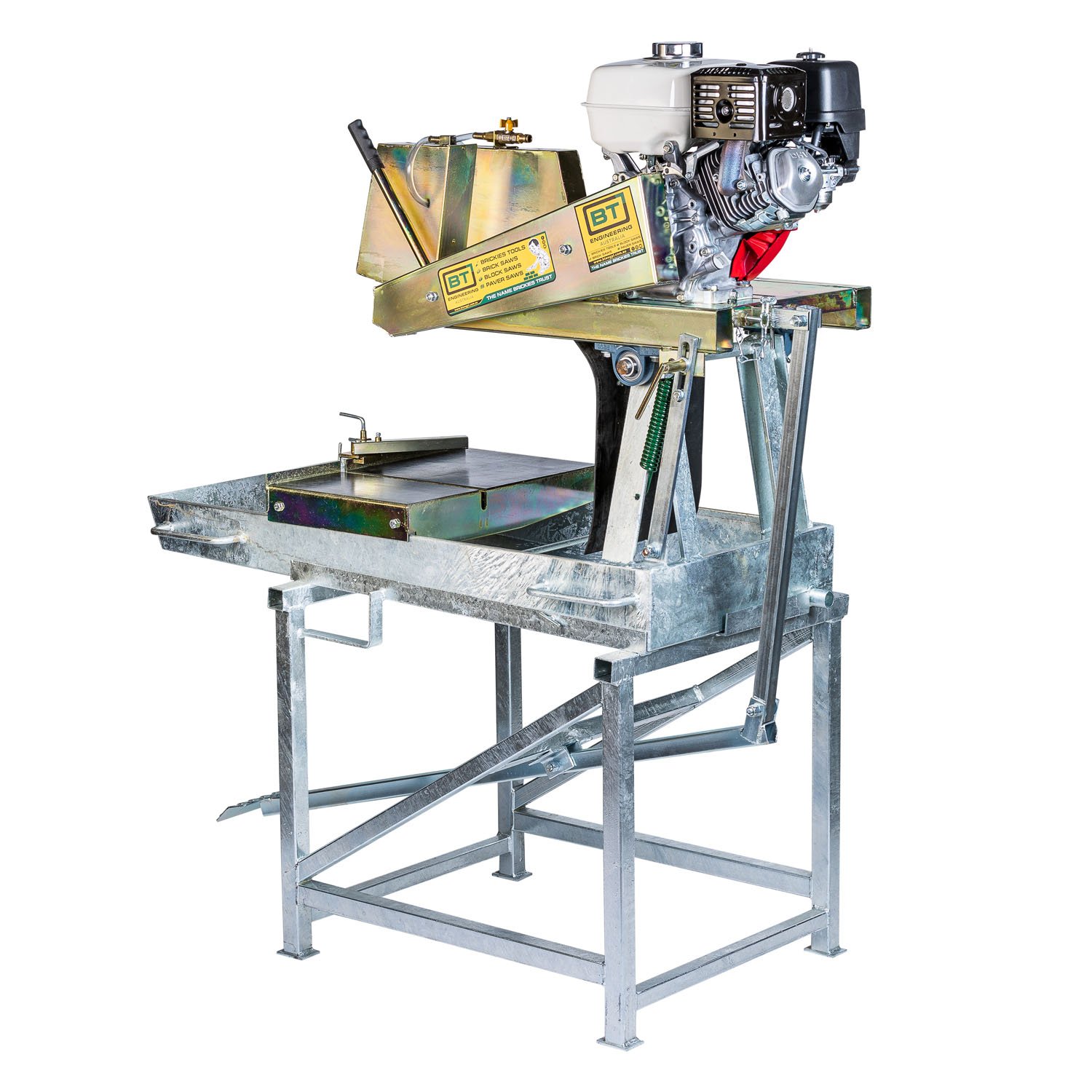

Block Saw 20” Petrol

The petrol block saw engineered for heavy masonry

For commercial block work where mains power isn’t available or practical, the BT Petrol Block Saw delivers uncompromised cutting capacity. 8″ of clearance, 20″ of blade, and a genuine Honda GX270 engine mean you can cut the hardest concrete blocks, stone, and large pavers in a single clean pass.

What makes this saw work

• Three cutting modes — fixed position, pull-down handle, or foot pedal
• Honda GX270 9HP engine — the grunt you need in any location
• Custom durable sliding carriage tray — stable platform for large blocks, pavers and bricks
• Engineered blade guard — user protection with effective dust suppression and easy blade changeover

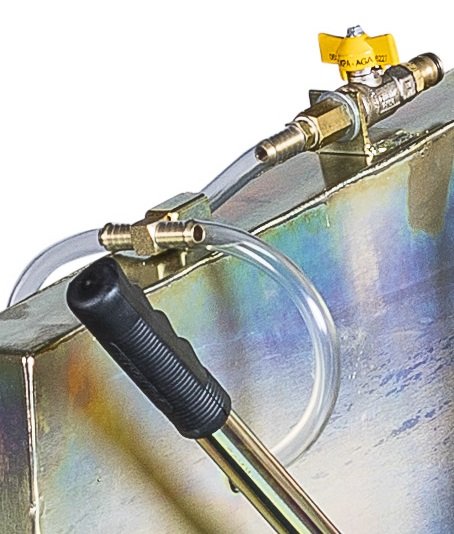

• Adjustable water supply valve — controlled dust management
• Rubber splash guard — reduces water spray and slurry build-up
• Removable mitre guide — repeatable cuts at any angle
• Detachable stand and base — compact transport in truck or van
• Galvanised and zinc-plated throughout — built to last

Motor specifications

• Custom-designed 9HP GX270 Honda 4-stroke engine
• Net power: 6kW (8HP) at 3600 rpm
• Continuous rated: 5.1kW (6.8HP) at 3600 rpm
• 270cc displacement, unleaded fuel, 2.3 litre tank
• Heavy-duty air filtration, recoil start

Blade and cutting specifications

• Blade: 510mm (20″) diameter, 25.4mm (1″) bore
• Depth of cut: 200mm (8″)
• Length of cut: 540mm (21″)
• Carriage: 360mm × 570mm (14″ × 22″)

Dimensions

• Assembled: 1450mm × 700mm × 1550mm, 150kg
• Packed for transport: 1450mm × 700mm × 1070mm

Blade not included. 12-month warranty. Engineered and manufactured in Australia — your quality tool partner. Download the BLSAWP Petrol Block Saw Instruction Manual.
